Powering Innovation: RaySA Engineering’s Successful Delivery of a 275KVA DC Electric Arc Furnace for Global Mining Leader

by Namastark | Oct 21, 2024 | Uncategorized

Powering Innovation: RaySA Engineering’s Advanced 275KVA DC Electric Arc Furnace for a Global Mining Leader

RaySA Engineering has recently marked a significant achievement with the successful design, construction, and delivery of an advanced 275KVA DC Electric Arc Furnace (EAF) for a leading global mining group. This project is a testament to RaySA’s commitment to delivering highly customized engineering solutions for specialized mineral resource processing. With a focus on meeting stringent regulatory, environmental, and operational standards, RaySA showcased its ability to manufacture complex systems entirely in-house while ensuring peak operational performance.

The development of this test furnace was essential for processing a unique mineral resource through an aluminothermic reduction method, which required precise automation and the capability to withstand extreme operating temperatures of up to 2000°C. The project not only highlights RaySA’s advanced technical capabilities but also reflects their dedication to building long-term partnerships through quality assurance and customer-focused collaboration.

Project Scope: A Complete Turnkey Engineering Solution

RaySA’s engineering scope extended beyond the core furnace to include the following key components:

275KVA DC Electric Arc Furnace: Specially designed to achieve optimal performance in smelting a niche mineral resource.
Pneumatic Feeding System: Automated to ensure accurate, continuous feed during smelting processes.
Glycol Cooling Plant: Essential for maintaining system stability under high operating temperatures.
Off-Gas Handling Equipment: Engineered to capture, filter, and safely manage byproduct gases generated during smelting.
Ingoting Station: Enables efficient casting of refined material into ingots.

The entire plant was manufactured in-house to ensure stringent quality control across every component. From precision manufacturing to final assembly, RaySA executed the project under exacting conditions, showcasing expertise across mechanical, electrical, and automation disciplines.

Blog 1 - Pneumatic Feeding plant during commissioning

Precision Engineering and Advanced Automation Systems

The automated control systems integrated into the EAF ensure high levels of accuracy, safety, and repeatability, critical for processes like aluminothermic reduction that demand consistency. The system’s core control mechanism relies on a custom-designed PLC (Programmable Logic Controller) developed by RaySA’s software engineers. This sophisticated control software allows for precise regulation of DC current and voltage, optimizing energy efficiency and operational performance.

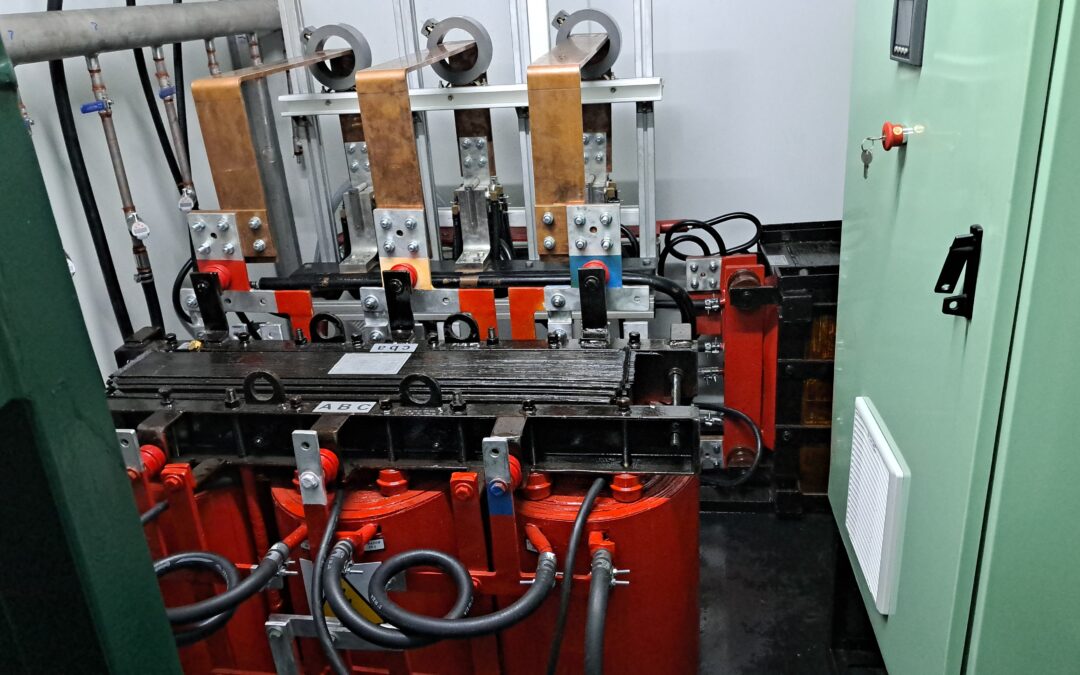

Additionally, water-cooled transformers, chokes, and DC filters were integrated to support the furnace’s high-energy demands while minimizing power losses. This advanced configuration enables RaySA’s clients to benefit from a smaller, more cost-effective power supply system without compromising performance. Throughout the smelting process, the system maintains open arc operations, ensuring that the furnace remains operational even as new material is continuously introduced into the batch feed.

Environmental Compliance through Efficient Off-Gas Management

Environmental responsibility is a core focus for RaySA, and the furnace’s off-gas management system reflects that commitment. The system captures and filters gases generated during the reduction process, ensuring compliance with international environmental standards. This not only reduces emissions but also enhances the safety of plant operations, minimizing potential risks to operators and the surrounding environment.

In-House Manufacturing and Comprehensive Testing

One of the defining aspects of this project is that all components were manufactured at RaySA’s facility. This approach enabled the company to maintain full control over quality at every stage of the process. Before shipment, the entire plant underwent Factory Acceptance Testing (FAT), during which the client was present to validate the system’s performance and functionality. This hands-on involvement from the client ensured alignment with their specific requirements and gave them confidence in the system’s capabilities prior to deployment.

Proven Robustness in Real-World Operations

Following the successful installation and commissioning of the plant, the ongoing operation of the furnace has further validated its design. The plant has demonstrated remarkable durability, efficiency, and reliability, proving that RaySA’s engineering solutions are not only fit for purpose but also capable of delivering long-term value to clients.

Engineering Excellence Tailored to the Mining Sector

This project serves as a prime example of RaySA Engineering’s ability to deliver advanced, customized solutions for the mining industry. From in-house manufacturing and automation expertise to compliance with international standards, every aspect of the 275KVA DC Electric Arc Furnace reflects RaySA’s commitment to excellence. The seamless integration of precision components, advanced automation, and robust environmental systems ensures that RaySA’s clients receive cutting-edge solutions that are efficient, reliable, and sustainable.

As the plant continues to operate and yield valuable results for the client, RaySA Engineering has once again proven that it is a trusted partner for delivering innovative engineering solutions tailored to meet the evolving needs of the mining sector.
